JHS waterproof cable with waterproof rubber sleeve is used for connecting AC voltage of 300/500V and below to submersible motors. One end of the cable is in water, and the long-term allowable working temperature does not exceed 65 ℃. JHS 6KV submersible motor with waterproof rubber sleeve soft cable is suitable for transmitting power to 6KV drainage submersible pumps, and the long-term allowable working temperature does not exceed 65 ℃.
JHS waterproof cable usage
Waterproof rubber sheathed cables are used for transmitting electrical energy on submersible motors with AC voltage of 500V and below.
JHS waterproof cable usage conditions
The long-term allowable working temperature of the cable is 65 ℃.
JHS waterproof cable specifications: number of cores x cross-sectional area/mm2, single core, three cores, four cores -3 x 2.5 3 x 2.5+1 x 1.5 1 x 4 3 x 4 3 x 4+1 x 2.5 1 x 6 3 x 6 3 x 6+1 x 4 1 x 10 3 x 10 3 x 10+1 x 6 1 x 16 3 x 16 3 x 16+1 x 6 1 x 25 3 x 25 3 x 25+1 x 6 1 x 35 3 x 35+1 x 6 1 x 50-1 x 70-
JHS waterproof cable insulation material: waterproof rubber is used for insulation; The filling of cables is also made of waterproof rubber; The cable sheath adopts waterproof rubber sheath, which is suitable for water treatment equipment such as submersible pumps, coal mines, underwater operations, and underwater scenic lights. This product uses high-density adhesive with waterproof and other functions.

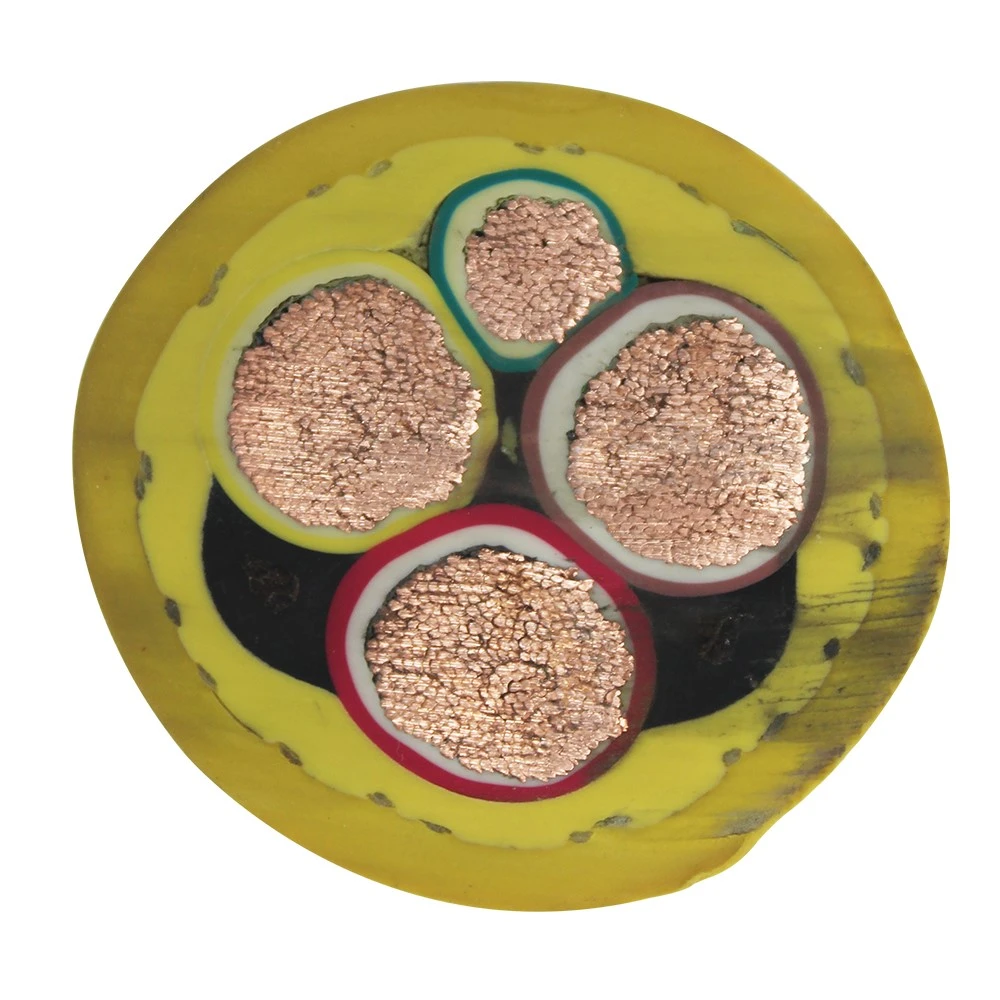

JHS Round Submersible Water Pump Cable Parameter
|
Conductor |
Nominal Core Dia |
Approx. Overall Dimensions of doubble Sheathed Cable |
Current Rating at 40 Degree |
||
|
Nominal Area |
Nos. & Dia. of Wire |
3core |
4core |
Amps |
|
|
Sq. mm. |
Nos./mm |
mm |
mm |
mm |
Amps |
|
1.5 |
22/0.30 |
3.25 |
10 |
10.8 |
14 |
|
2.5 |
36/0.30 |
3.84 |
11 |
12.5 |
18 |
|
4 |
56/0.30 |
4.5 |
13 |
14.1 |
26 |
|
6 |
84/0.30 |
5.3 |
14.6 |
16 |
31 |
|
10 |
140/0.30 |
6.5 |
18 |
20.35 |
42 |
|
16 |
224/0.30 |
8 |
21.2 |
23.4 |
57 |
|
25 |
350/0.30 |
10.1 |
26 |
28.8 |
72 |
|
35 |
490/0.30 |
11.3 |
28.3 |
31.5 |
90 |
|
50 |
703/0.30 |
13.6 |
33.5 |
37.3 |
115 |
|
70 |
988/0.30 |
15.3 |
37.8 |
42.2 |
143 |
|
95 |
1349/0.30 |
18 |
43.5 |
48.8 |
165 |
Flat Submersible Water Pump Cables Parameter
|
Conductor Size |
No of Conductor |
Nos of Dia. Of Wire |
Ground Conductor Size |
Core Dia |
Nominal Sheath Thickness |
|
AWG |
AWG |
MM |
MM |
||
|
14 |
3 |
41×0.254 |
14 |
3.85 |
1.15 |
|
12 |
3 |
65×0.254 |
12 |
4.5 |
1.15 |
|
10 |
3 |
105×0.254 |
10 |
5.3 |
1.15 |
|
8 |
3 |
168×0.254 |
10 |
6.5 |
1.4 |
|
6 |
3 |
226×0.254 |
8 |
8 |
2 |
|
4 |
3 |
420×0.254 |
8 |
10.1 |
2 |
|
2 |
3 |
665×0.254 |
6 |
11.3 |
2.2 |
|
1 |
3 |
817×0.254 |
6 |
13.6 |
2.2 |
|
1/0 |
3 |
1045×0.254 |
6 |
15.6 |
2.2 |
|
2/0 |
3 |
1330×0.254 |
6 |
18 |
2.2 |
1. Efficient waterproof performance: JHS waterproof cables are made of a waterproof shielding layer made of polymer materials, which has excellent waterproof performance and can effectively prevent moisture and moisture from seeping into the interior of the cable, ensuring its normal operation.
2. High temperature and low temperature resistance: JHS waterproof cables use special insulation and sheath materials, which have good high temperature and low temperature resistance performance.
In hot summer or cold winter, the stability of cables can be maintained without aging or hardening due to temperature changes.
3. Safety and reliability: JHS waterproof cables strictly follow relevant national standards and regulations in the design and production process to ensure the safety and reliability of the products.
Whether it is outdoor power transmission, underground power wiring, or the power demand of industries such as agriculture and transportation, JHS waterproof cables can reliably meet the demand and ensure the safe operation of the power system.
In addition to the above characteristics, JHS waterproof cables also have advantages such as easy installation, low maintenance costs, and long service life.
It can be widely applied in various fields such as urban construction, agricultural production, industrial manufacturing, transportation, etc., providing stable and reliable power guarantee for various industries.
Overall, JHS waterproof cables, as a cable product specifically designed for humid environments, have excellent waterproof performance, high and low temperature resistance, safety and reliability, and are suitable for various outdoor or high humidity power transmission needs.
