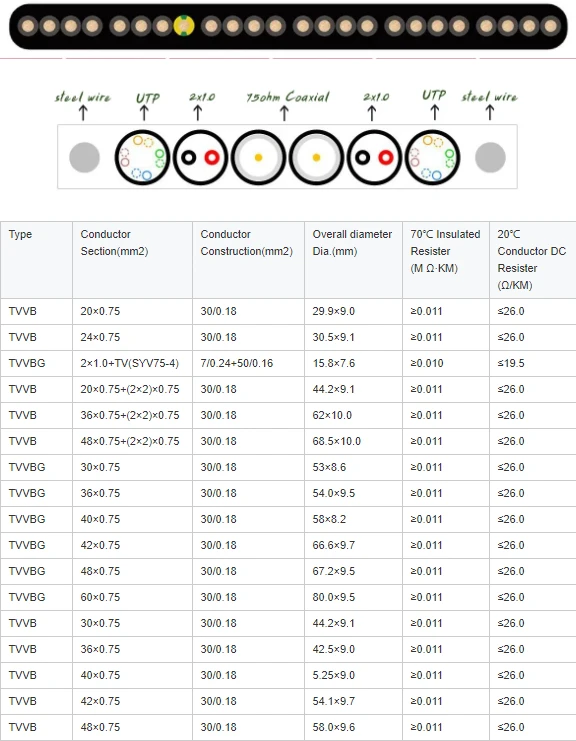

Flexible Elevator Cable Information
Conductor: multi-strand superfine fine twisted oxygen-free copper wire in accordance with VDE0295CLASS 5 standard
Insulation: special hybrid PVC
insulation color: color, consistent with GB5023.6 (yellow, white, orange, light green, pink) digital numbering (no yellow and green ground wire)
lining: no
Reinforcement: high strength galvanized aerial wire (optional);
Sheathing: cold resistant PVC special sheath gray or black
Rated voltage: 300 / 500V;
Test voltage: 2500V
Static bending test: 0.3 m < L < 0.6 m
Vertical combustion test: through GB/T18380.1-2001,IEC60332-1:1993 test
Product standard: GB5023.6,lEC60227-6,EN50214.
Introduction
The Flexible elevator cable adopts the special structure design, the service life is long, and the operation efficiency of the elevator production enterprise is improved to the maximum extent. The control cable of the elevator can provide overall electrical control when the suspension length is long, and bear the mechanical stress at the same time. The elevator cable can be used for long-distance suspended use because of the steel wire carrying cable core.
The cable characteristic adopts the new cold-resistant flexible special outer sheath, can maintain the softness at-15 ℃ low temperature.
To be used in dry and humid locations but not in the open-air for low and medium-level mechanical loads. This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines provided it is exposed to bending in only one plane. Cables with more than 5 cores grouped with individual groups separated by a stay.
Product Advantages
Flexible elevator cable
Good cable, not eccentric
Strict production process, precision assembly line production, ensure that our cable will not appear eccentric, manual check, root quality qualified.
Anaerobic copper core
Anaerobic copper material, good electrical conductivity, not easy to heat, fast and stable transmi ssion, roots are anaerobic copper wire
Use of nitrile cables
Widely used in power generation, metallurgy, chemical industry, various mobile Motors, steel, aviation, power plants, petrochemical and other high temperature environment.
Product certification
About us
Shaanxi Woquan Trading Co., Ltd. is a manufacturer of special cable R & D in China. All of our products are produced in strict accordance with German VDE standards and widely adopt modern advanced production technology. And our customers are involved in power engineering and manufacturing institutions of large and medium-sized state-owned and foreign-owned companies.
Our products include all kinds flexible mobile special cable, covering stationary and flexing installation of data Communication, power transmission and used in extremely environments.
Main industries include railway transport, data transmission, natural gas and petrochemical industry, green electricity, mining and tunnels, ships, reel winding and communications etc.
"Cable Customization" is a special service to close our customers. With more than 10 years of experience, we can analyze the challenges faced by our customers and provide our professional technology and best solutions for the hardest requirements.
Package and Shipping
FAQ
1. How can I learn more about your company and products?
Please leave a message on the website and leave your email or phone number, and a sales manager will email you a catalog or call you directly.
You are also welcome to visit our company!
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 1000m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
