Flat TPS Cable
video

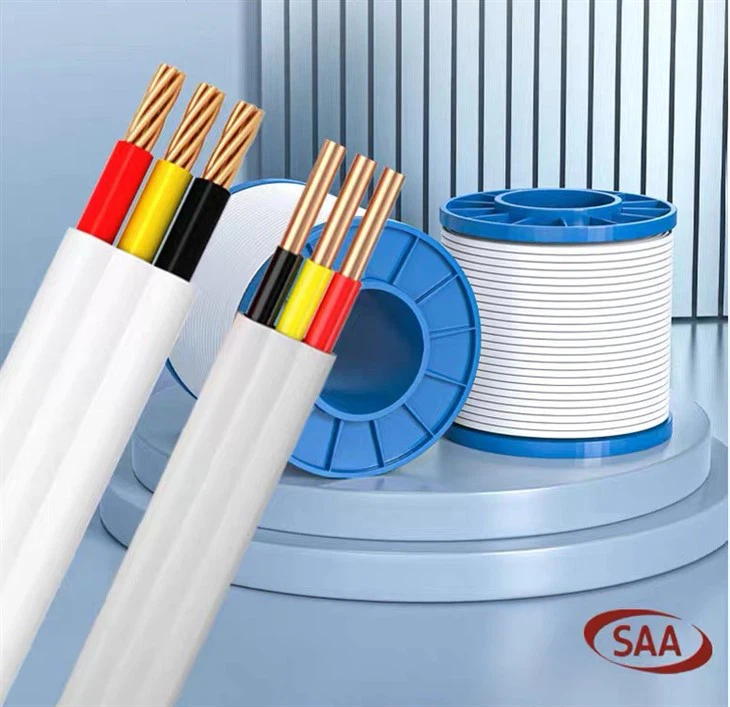

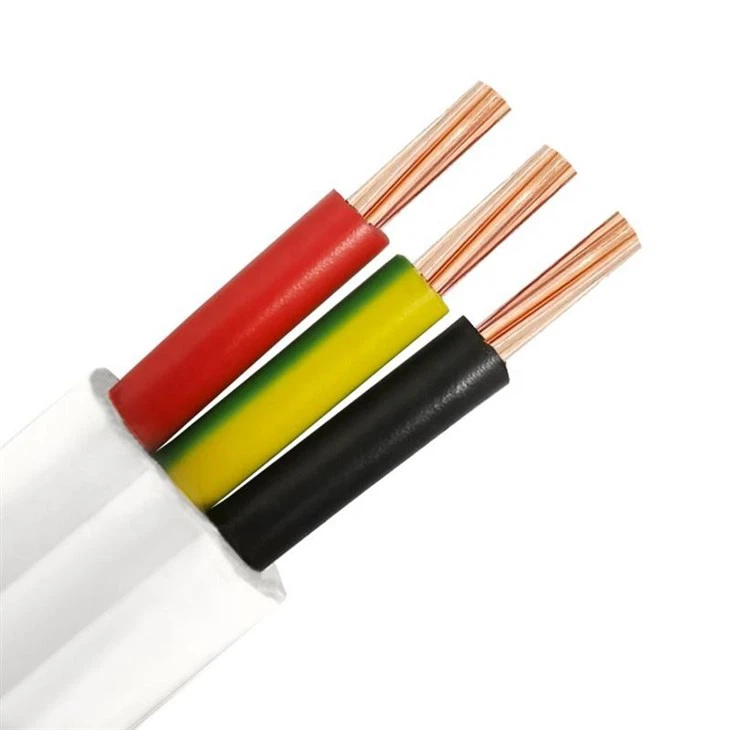

Flat TPS Cable

Flat TPS Cable

Full name: Flat thermoplastic sheathed cable (TPS)
Standards: AS/NZS 5000.2, AS/NZS 1125, AS/NZS 3808
Rated voltage (U₀/U): 450/750V
Test voltage: 2500V
Send Inquiry
Chat Now

Product Introduction

Product Specifications

Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1)

Insulation: V-90 PVC

Sheath: 3V-90 PVC

Application:For general wiring, unenclosed, enclosed in conduit, for domestic, commercial, and industrial installations where not subject to mechanical damage.



Behaviour In Flame and Fire

Flame Retardant

Normal Operating Temperature

90°C

Minimum Operating Temperature

0°C

Chemical Exposure

Occasional

Mechanical Impact

Light

Water Exposure

Occasional Condensation

Solar Radiation and Weather Exposure

Occasional

Installation Conditions

In Free Air/In Conduit/In Ground With Protection/External Building

Insulation Colour

2 Core: Red, White

2 Core + Earth: Red, Black, Green/Yellow

3 Core : Red, White, Blue

3 Core + Earth: Red, White, Blue, Green/Yellow

Sheath Colour

White/Yellow/Purple/Blue

PS Flat Cable

1.Australian Flat cable
2.PVC insulation
3.Copper conductor
4.Conform to AS/NZS 5000:2
5. CE, TUV,PSB Certificate

6.Two cores and earch cable

7.High quality and fast delivery

8.Competitive price

 TPS CABLE

Nominal section(mm²)

Number of conductors

Toplimit of overall diameter(mm)

Maximum DC resistance(20℃)(Ω/km)

Minimum insulation resistance(70℃)(MΩ.km)

Recommended value of carrying capacity(A)

Reference weight(kg/kmm)

2x0.75

1

4.6x7.1

24.5

0.012

13

42

2x1.0

1

4.8x7.4

18.1

0.011

16

49

2x1.5

1

5.3x8.5

12.1

0.011

20

65

2x2.5

1

6.2x10.1

7.41

0.010

27

97

2x4

1

6.7x11.1

4.61

0.0085

38

140

2x6

1

7.5x12.5

3.08

0.0070

50

192

2x10

2

9.5x16.2

1.83

0.0065

69

306

3x0.75

1

4.6x9.6

24.5

0.012

9.5

60

3x1.0

1

4.8x10.1

18.1

0.011

11

70

3x1.5

1

5.3x11.7

12.1

0.011

13

95

3x2.5

1

6.2x14.0

7.41

0.010

21

142

3x4

1

7.0x15.8

4.61

0.0085

27

213

3x6

1

7.5x17.5

3.08

0.0070

34

284

3x10

2

9.5x23.0

1.83

0.0065

55

457



Applications:

Electrical wires is suitable for use in power installations, fixed wiring and flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less

Flat TPS Cable

1. Excellent electric and mechanical characteristics

2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant

3. Simple in structure,Convenient to use

4. Reduce costs



Product Certification

certificates



 About Us

Shaanxi Woquan Trading Co., Ltd. is a professional manufacturer in R&D production and sales .



The area of factory around 6000 Square meters. With a series of advanced equipment and technology, including High-voltage testing equipment and technology. as well as very strictly in house QC, to ensure stable and reliable quality. In addition, the products certificated by CE,FC, RoHS .



With rich experience in OEM & ODM projects, we provide clients with a one-stop solution from design & prototype, mold development to injection with our experienced engineer team, who focuses on speedy development and punctual delivery. As our clients, you will benefit from our vast experience, which enables us to offer you efficient services, up-to-date and the most important high quality control standards. Your satisfaction and success is our pride.

workshop



Package And Shipping

Package and Shipping



FAQ

1. What does TPS stand for in Flat TPS Cable?

TPS stands for Thermoplastic Sheathed cable. It refers to a flat, PVC-insulated and PVC-sheathed electrical cable widely used in Australia and New Zealand, complying with AS/NZS 5000.2 standards.


2. What are the key specifications of Flat TPS Cable?

Voltage rating: 450/750V

Conductor: Annealed plain copper (solid or stranded)

Insulation: V-90 PVC, rated for 90°C continuous operation

Sheath: 3V-90 PVC, easy-tear white sheath

Standards: AS/NZS 5000.2, AS 1125, AS 3808


3. Where is Flat TPS Cable typically used?

It is used for general fixed wiring in domestic, commercial, and industrial installations. Common applications include lighting circuits, power outlets, and heating systems. It can be installed unenclosed, enclosed in conduit, buried directly, or in underground ducts where not subject to mechanical damage.


4. What are the temperature and bending radius limits?

Maximum continuous operating temperature: 90°C

Minimum bending radius (fixed installation): 4 × cable overall diameter

Minimum bending radius (flexed/moving): 7 × cable overall diameter to 15 × cable overall diameter

Operating temperature range: Fixed installation: -40°C to +90°C; Moving installation: -5°C to +90°C


5. What core configurations are available?

Flat TPS Cable is available in 2-core + earth and 3-core + earth configurations. The earth (ground) conductor is a key safety feature of the design. Standard cross-sections range from 1mm² to 16mm², with common sizes including 1.5mm², 2.5mm², 4mm², and 6mm².
