As a seasoned supplier of high voltage cables, I've witnessed firsthand the critical importance of comprehensive testing in ensuring the safety, reliability, and performance of these essential components. High voltage cables are the backbone of power transmission and distribution systems, carrying electricity over long distances and delivering it to homes, businesses, and industries. Therefore, rigorous testing of these cables is non-negotiable to prevent failures that could lead to power outages, equipment damage, and even safety hazards.
Electrical Tests
Insulation Resistance Test
Insulation resistance testing is one of the most fundamental tests for high voltage cables. It measures the resistance of the cable's insulation to the flow of electrical current. A high insulation resistance indicates good insulation integrity, while a low value may suggest insulation damage or moisture ingress. This test is typically performed using a megohmmeter, which applies a DC voltage to the cable and measures the resulting current. The insulation resistance value is then calculated using Ohm's law.
Capacitance Test
Capacitance testing is used to measure the capacitance of the cable, which is a measure of its ability to store electrical energy. The capacitance of a cable is influenced by its physical dimensions, insulation material, and the presence of any defects. By measuring the capacitance, we can detect changes in the cable's insulation properties over time, which may indicate degradation or damage. Capacitance testing is typically performed using a capacitance bridge or a digital capacitance meter.
Dielectric Loss Factor Test
The dielectric loss factor, also known as the dissipation factor, is a measure of the energy dissipated as heat in the cable's insulation when an alternating current (AC) is applied. A high dielectric loss factor indicates poor insulation quality, as more energy is being lost as heat. This test is important because excessive dielectric losses can lead to overheating, which can accelerate insulation degradation and ultimately cause cable failure. The dielectric loss factor is typically measured using a Schering bridge or a digital dielectric loss factor meter.
Partial Discharge Test
Partial discharge is a localized electrical discharge that occurs within the insulation of a high voltage cable when the electric field strength exceeds a certain threshold. Partial discharges can cause damage to the insulation over time, leading to reduced insulation performance and eventually cable failure. Partial discharge testing is used to detect and measure the magnitude and frequency of partial discharges in the cable. This test is typically performed using a partial discharge detector, which measures the electrical pulses generated by partial discharges.
AC Voltage Withstand Test
The AC voltage withstand test is used to verify the cable's ability to withstand the rated voltage for a specified period without experiencing electrical breakdown. This test is typically performed using a high voltage test transformer, which applies an AC voltage to the cable for a specified duration. The voltage level and duration of the test are determined by the cable's rated voltage and the applicable standards. If the cable passes the AC voltage withstand test, it indicates that the cable's insulation is capable of withstanding the normal operating voltage without failure.
Mechanical Tests
Tensile Test
The tensile test is used to determine the cable's ability to withstand pulling forces without breaking. This test is important because high voltage cables are often subjected to significant tensile forces during installation and operation. The tensile test is typically performed using a tensile testing machine, which applies a gradually increasing tensile force to the cable until it breaks. The maximum tensile force that the cable can withstand is recorded as its tensile strength.
Bending Test
The bending test is used to evaluate the cable's flexibility and its ability to withstand repeated bending without damage. This test is important because high voltage cables are often installed in areas where they need to be bent around corners or over obstacles. The bending test is typically performed using a bending test machine, which bends the cable around a specified radius for a specified number of cycles. After the bending test, the cable is inspected for any signs of damage, such as cracks or breaks in the insulation.
Impact Test
The impact test is used to determine the cable's ability to withstand sudden impacts without damage. This test is important because high voltage cables may be subjected to impacts during installation, transportation, or operation. The impact test is typically performed using an impact testing machine, which drops a weighted hammer onto the cable from a specified height. The cable is then inspected for any signs of damage, such as cracks or breaks in the insulation.
Thermal Tests
Temperature Rise Test
The temperature rise test is used to measure the increase in temperature of the cable when it is carrying a specified current for a specified period. This test is important because high voltage cables generate heat when they carry current, and excessive temperature rise can cause damage to the insulation and reduce the cable's lifespan. The temperature rise test is typically performed using a temperature sensor, which measures the temperature of the cable at various points along its length. The maximum temperature rise is then recorded and compared to the allowable temperature rise specified by the cable's design and the applicable standards.
Thermal Cycling Test
The thermal cycling test is used to evaluate the cable's ability to withstand repeated cycles of heating and cooling without damage. This test is important because high voltage cables may be subjected to thermal cycling during operation, which can cause the insulation to expand and contract, leading to mechanical stress and potential damage. The thermal cycling test is typically performed using a thermal cycling chamber, which exposes the cable to a series of temperature cycles between a specified minimum and maximum temperature. After the thermal cycling test, the cable is inspected for any signs of damage, such as cracks or delamination in the insulation.
Chemical Tests
Chemical Analysis
Chemical analysis is used to determine the chemical composition of the cable's insulation and other components. This test is important because the chemical composition of the cable can affect its performance and durability. Chemical analysis is typically performed using techniques such as spectroscopy, chromatography, and elemental analysis. By analyzing the chemical composition of the cable, we can ensure that it meets the specified requirements and is free from any harmful contaminants.
Aging Test
The aging test is used to simulate the long-term effects of environmental factors, such as heat, humidity, and UV radiation, on the cable's insulation. This test is important because high voltage cables are often exposed to harsh environmental conditions during their service life, which can cause the insulation to degrade over time. The aging test is typically performed by exposing the cable to a controlled environment for a specified period, and then measuring the changes in its electrical, mechanical, and chemical properties. By conducting aging tests, we can predict the cable's lifespan and ensure that it will continue to perform reliably over its intended service life.
Conclusion
In conclusion, comprehensive testing of high voltage cables is essential to ensure their safety, reliability, and performance. By conducting a variety of electrical, mechanical, thermal, and chemical tests, we can detect any potential defects or degradation in the cable's insulation and other components, and take appropriate measures to prevent cable failure. As a high voltage cable supplier, we are committed to providing our customers with high-quality cables that have been thoroughly tested and meet the highest standards of quality and performance.

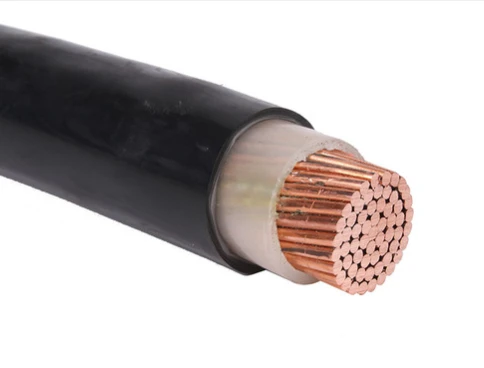

If you are in the market for high voltage cables, we invite you to explore our range of products, including the 35 To 500kv High Voltage Copper Conductor XLPE Power Cable, High Voltage 33kv 3 Core Xlpe Power Cable, and ZC-YJV/YJV22 XLPE Insulated Cable Underground Cable. Our cables are designed and manufactured to meet the most demanding applications, and we are confident that we can provide you with the right solution for your needs. Please feel free to contact us to discuss your requirements and to learn more about our products and services.
