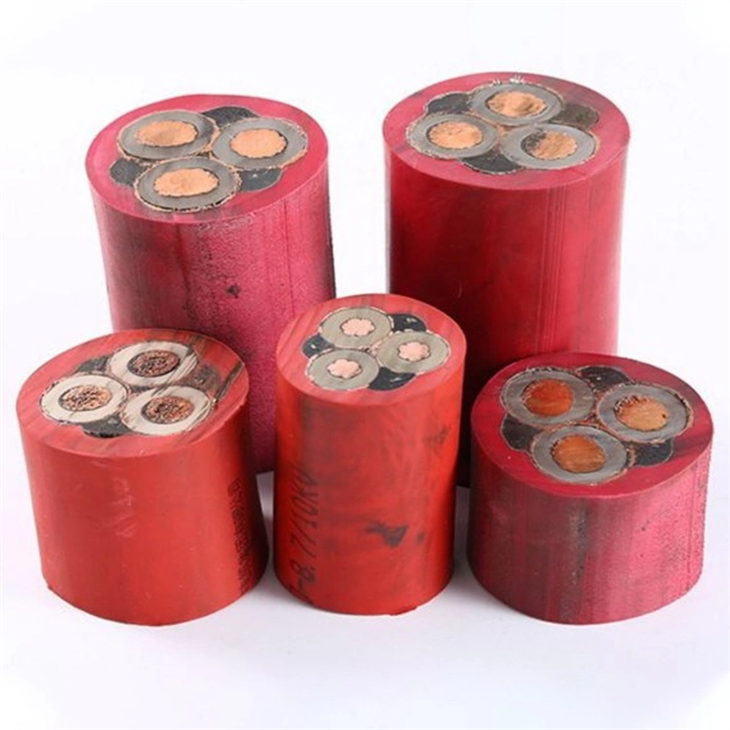

Mining cable
Mining cable is the abbreviation of coal mine cable, mining cables are flame retardant cables, should be issued by the national safety symbol center for mining products safety mark certificate. U type (M type) rubber sheathed cable for coal mine. Mining rubber sheathed flexible cable is suitable for mobile laying cables for mining power plants with rated power frequency voltage U0/U 8.7/10KV and below.
● Rated power frequency voltage U0/U is 380/660V, 660/1140V, 0.6/1KV,1.8/3kv, 3.6/6kv,6/6KV, 6/10KV, 8.7/10KV, 300/500V.
● Maximum allowable operating temperature of cable conductor: 65℃ 90℃
● The lowest allowable working ambient temperature of the cable is -35℃
● Cable bending radius: not more than 6 times the cable diameter.
|
Nominal-sectionalarea of conductor |
Insulation thickness |
Sheath thickness |
D.Cresistance of conductor(mm) |
Insuiation resistance |
Currerent rating |
||||
|
In air(A) |
Dirct in soil(A) |
||||||||
|
mm² |
mm |
|
|
|
(MΩKm) |
|
|
Cu |
|
|
4*4 |
0.7 |
1.8 |
≤4.61 |
≤7.41 |
≥0.757 |
27 |
21 |
39 |
30 |
|
4*6 |
0.7 |
1.8 |
≤3.08 |
≤4.61 |
≥0.654 |
35 |
27 |
48 |
37 |
|
4*10 |
0.7 |
1.8 |
≤1.83 |
≤3.08 |
≥0.523 |
49 |
38 |
65 |
50 |
|
4*16 |
0.7 |
1.8 |
≤1.15 |
≤1.91 |
≥0.431 |
67 |
52 |
88 |
68 |
|
4*25 |
0.7 |
1.8 |
≤0.727 |
≤1.20 |
≥0.444 |
89 |
69 |
113 |
87 |
|
4*35 |
0.9 |
1.8 |
≤0.524 |
≤0.868 |
≥0.379 |
106 |
82 |
136 |
105 |
|
4*50 |
1.0 |
1.8 |
≤0.387 |
≤0.641 |
≥0.355 |
135 |
104 |
167 |
129 |
|
4*70 |
1.1 |
2.0 |
≤0.268 |
≤0.443 |
≥0.355 |
167 |
129 |
196 |
152 |
|
4*95 |
1.1 |
2.0 |
≤0.193 |
≤0.320 |
≥0.290 |
200 |
135 |
233 |
180 |
|
4*120 |
1.2 |
2.3 |
≤0.153 |
≤0.253 |
≥0.282 |
234 |
181 |
267 |
207 |
|
4*150 |
1.4 |
2.4 |
≤0.124 |
≤0.206 |
≥0.294 |
273 |
211 |
306 |
237 |
|
4*185 |
1.6 |
2.6 |
≤0.0991 |
≤0.164 |
≥0.303 |
318 |
246 |
341 |
264 |
|
4*240 |
1.7 |
2.8 |
≤0.0754 |
≤0.125 |
≥0.283 |
380 |
294 |
400 |
310 |
|
4*400 |
2.0 |
3.3 |
≤0.047 |
≤0.0778 |
≥0.250 |
640 |
510 |
640 |
510 |
|
