1: Production Information
Fire-resistance Low-smoke Halogen-free Steel Tape Electric Power Cable has non-flammable,smokeless, non-toxic and fire-resistant characteristics.It also has some advantages that other cables cannot have, such as fire resistance, large carrying capacity, shock voltage resistance,mechanical damage resistance, halogen-free,non-toxic, explosion-proof,waterproof, corrosion resistance,long service life,safety, overload resistance andresistance. High temperature and low cost.
Fire-resistance Low-smoke Halogen-free Steel Tape Electric Power Cable has high electric strength, mechanical strength, high-ageing resisting, environ metal stress resisting anti-chemical cross, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Application scenario
It can’t burn or continuously burn, with excellent fire resistance, ant-seismic and water spray resistance. n fire, cables can guarantee safe power supply, support power supply for survival and fire extinguishing, safeguard life, property and information, They can be used in installation of transmission and distribution line in some important places, such as tunnels.cable chutes, cable trays, vertical shafts, high-rise buildings, rail transit, hospitals, shopping centers, exhibition halls.garages, entertainment venues, and data center, etc.
2: Further Introduction
This electric power cable is designed with fire-resistance, low-smoke, and halogen-free properties, ensuring optimal safety during use. The cable has a rated voltage of 0.6/1KV, 3.6/6KV, and 6.5/11KV, with a maximum working temperature of 90°C and a maximum temperature of 250°C during short circuits lasting ≤5S. The conductor is made of class 1 or 2 copper with sectional areas ranging from 25 to 630mm2. The insulation material used in the cable is XLPE, and the armor is made of steel wire or steel tape for three-core cables. In contrast, non-magnetic materials are used for single-core cables. The oversheath is PVC, and the minimum bending radius is 15 times the cable radius for single-core cables and 12 times for multi-core ones. Additionally, the max conductor DC resistance at 20°C complies with industry standards.
3: Cable Parameters

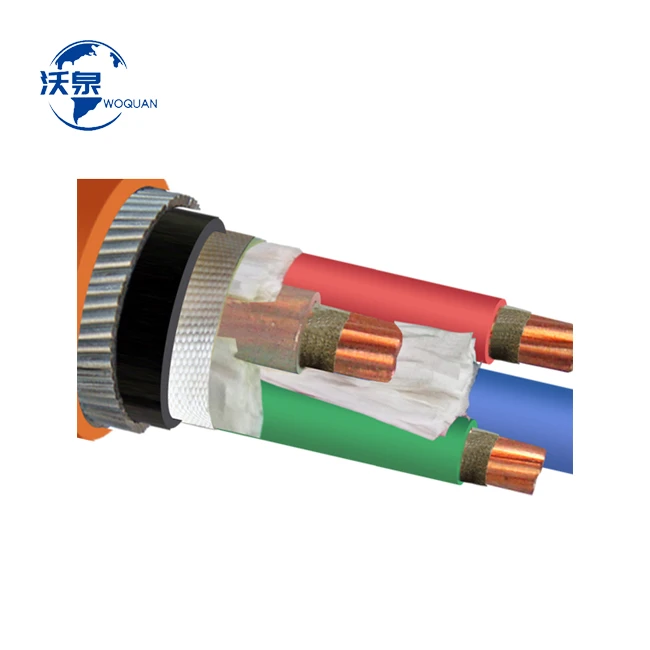

4: Fire-resistance Low-smoke Halogen-free Steel Tape Electric Power Cable
5: Product certification
6: About us
7: Package and Shipping
8: FAQ:
1. What kinds of products does manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
2. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS , 3C, SAA, UL...
3.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe,Australia, etc.
4. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB,IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
5. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 1000 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
