1: Introduction

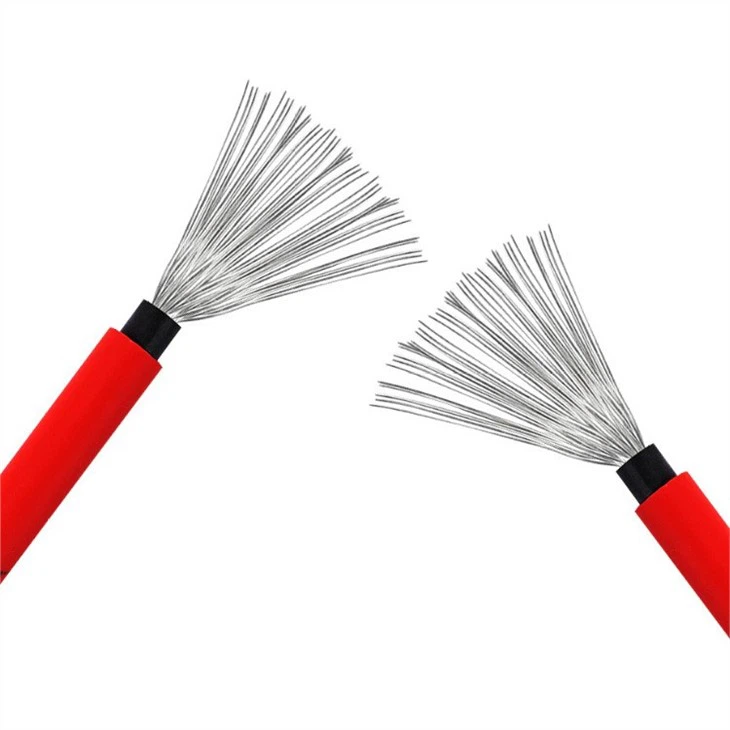

Tinned copper cable
1) Product implementation standards: UL758; UL certification
2) Style No.: Flexible silicone wire
3) Size: 30 awg to 1/0 awm flexible silicone wire
4) Rated Voltage: 600V
5) Rated Temperature:-60°C~+200°C
6) Conductor: Stranded silver plated copper wire or nickel plated copper wire
7) Insulation: slicone rubber
2: Product Information
Origin: Xi'an, Shaanxi, China
Brand name: Woquan
Model: silicon wire Ch001
Type: insulation
Application: heating
Conductor material: flexible tinned copper
Conductor type: stranded
Insulation material: silicone rubber
Product name: 2 awg 4awg 6awg 8awg high toughness silicon wire
Color: black, red, white, yellow, blue, green
Insulation: high-temperature silicone rubber wire and cable
Certification: ROHS/CCC/VDE/CCC/SGS
Flame test: FT2
Temperature: - 60~+200 ℃
Package: 100M/roll
Conductor: flexible tinned copper
Voltage: 600 V
Purpose: used for internal wiring of high-temperature motor
3: Cable Parameters
conductor | Insulator | Packing | |||
600V | |||||
AWG | Conductor construction No.xΦmm | Diameter mm | Insulator Thick mm | Over Diameter mm | m/roll |
30 | 11/0.08 | 0.30 | 0.35 | 1.00 | 300.00 |
28 | 16/0.08 | 0.36 | 0.55 | 1.30 | 300.00 |
26 | 30/0.08 | 0.46 | 0.55 | 1.40 | 300.00 |
24 | 40/0.08 | 0.61 | 0.55 | 1.50 | 300.00 |
22 | 60/0.08 | 0.78 | 0.55 | 1.70 | 300.00 |
20 | 100/0.08 | 0.92 | 0.55 | 1.80 | 300.00 |
18 | 150/0.08 | 1.19 | 0.55 | 2.30 | 200.00 |
16 | 252/0.08 | 1.53 | 0.80 | 3.00 | 200.00 |
14 | 400/0.08 | 1.78 | 0.90 | 3.50 | 200.00 |
12 | 680/0.08 | 2.48 | 1.00 | 4.50 | 200.00 |
10 | 1050/0.08 | 3.06 | 1.25 | 5.50 | 100.00 |
8 | 1650/0.08 | 3.75 | 1.25 | 6.30 | 100.00 |
6 | 3200/0.08 | 5.9 | 1.22 | 8.50 | 100.00 |
4 | 4300/0.08 | 6.9 | 1.0 | 9.0 | 100.0 |
2 | 6700/0.08 | 9.8 | 1.2 | 12.5 | 100.0 |
4：Product Advantages
Tinned copper cable
excellent resistance to high temperature
low temperature resistance
excellent electrical insulation performance
high voltage resistance
aging resistance
long service life
Tinned copper wire has a better anti-oxidation performancereduce the producing of heat, which make it more durable andeco-friendly.
5.Application Scenarios:
Tinned copper cable
Electronic industry
temperature compensation wire, low temperature wire
high temperature heating wire, anti-aging wire and flame retardant wire
household appliances industry
air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers
electronic thermos, Electric oven, lighting and other internal wiring.
6.Product certification
7. About us
The company is an enterprise specialized in manufacturing and selling cables and wires. The division of labor within the company is clear. The professional production line and sales team complement each other in the continuous development of the company, achieving the development goal of high efficiency and high efficiency. The company office team is located in Shaanxi Province, China. The company has a modern industrial production base, advanced professional cable manufacturing means and technology, and sophisticated testing equipment, which reflects high-quality product results in the production chain. In addition, we have a group of high-quality production management personnel and skilled production technology backbones in the company and production workshop. They have strong technical force, super production capacity and supply capacity. It has promoted the further development of the company.
8. Package and Shipping
9.FAQ:
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
7.Q:Are you Factory or Trading Company?
A:We both are Factory and Trading Company, we offer one-stopservice about producing and selling
8.Q:What is your MOQ
A:According to different product,MOQ is about 10 to 100 pcscommonly.
9.Q:Can I get free sample?
A:Yes!lf you have placed oreder in our online store before,whenyou place order next time,we'd like to provide free sample to you
10.Q:How do you guarantee your product quality?
A:Before we deliver goods,we would do testing strictly to makesure that quality of product is ok.
