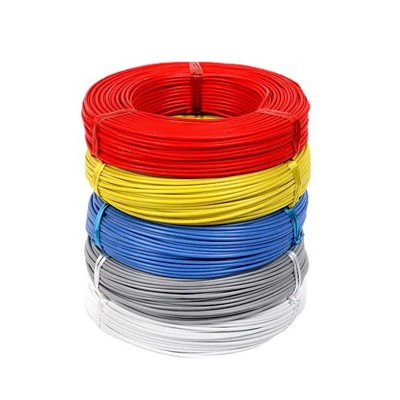

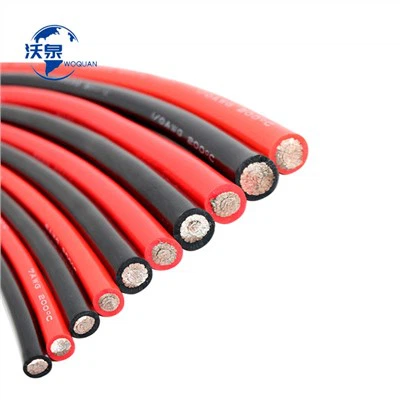

High temperature resistant silicone wire specifications
|
Rated voltage：600v. Temperature：-60℃～200℃. |
Conductor：Tinned copper wire. Insulation：silicone. |
||||||||
|
Applicable: Battery, Model Aircraft, Electronic Motor, Industry, Power Distribution Cabinet, Drone, Etc. |
|||||||||
|
Conductor |
Insulator |
Electric |
Current |
Length |
Weight |
||||
|
Wire |
copper wire |
Area |
Copper Diameter |
Thickness |
OD |
Resistance |
Abe |
Kilogram |
|
|
AWG |
mm |
mm² |
mm |
mm |
mm |
Ω/km |
A |
m/roll |
KG/R |
|
95² |
19000/0.08 |
95 |
12.75 |
2.65 |
18 |
0.18 |
500 |
50 |
51 |
|
75² |
15000/0.08 |
75 |
11.5 |
2.4 |
15.5 |
0.45 |
400 |
50 |
39 |
|
50² |
10000/0.08 |
50 |
9.2 |
2.4 |
14 |
0.63 |
300 |
50 |
28 |
|
2AWG |
6700/0.08 |
33.5 |
7.75 |
2.4 |
13 |
0.89 |
200 |
50 |
21 |
|
4AWG |
5000/0.08 |
25 |
6.55 |
2.4 |
11 |
1.25 |
180 |
50 |
15 |
|
5AWG |
4000/0.08 |
20 |
5.85 |
1.85 |
9.5 |
1.5 |
160 |
100 |
24 |
|
6AWG |
3200/0.08 |
16 |
5.25 |
1.65 |
8.5 |
1.9 |
140 |
100 |
19 |
|
7AWG |
2400/0.08 |
12 |
4.55 |
1.35 |
7.2 |
2.6 |
100 |
100 |
14 |
|
8AWG |
1650/0.08 |
8.25 |
3.75 |
1.35 |
6.5 |
3.7 |
80 |
100 |
10 |
|
8AWG |
1650/0.08 |
8.25 |
3.75 |
1.2 |
6 |
3.7 |
80 |
100 |
10 |
|
9AWG |
1200/0.08 |
6 |
3.2 |
1.35 |
6 |
5.5 |
60 |
100 |
8 |
|
10AWG |
1050/0.08 |
5.25 |
3 |
1.3 |
5.5 |
6.3 |
50 |
100 |
6.85 |
|
11AWG |
750/0.08 |
3.8 |
2.55 |
1.2 |
5 |
8.3 |
40 |
100 |
5.4 |
|
12AWG |
680/0.08 |
3.4 |
2.4 |
1.05 |
4.5 |
10 |
30 |
100 |
4.6 |
|
13AWG |
500/0.08 |
2.5 |
2.05 |
1 |
4 |
12.5 |
25 |
100 |
3.5 |
|
14AWG |
400/0.08 |
2 |
1.85 |
0.9 |
3.5 |
15 |
20 |
200 |
5.4 |
|
15AWG |
300/0.08 |
1.5 |
1.6 |
0.8 |
3.2 |
20 |
15 |
200 |
4.4 |
|
16AWG |
252/0.08 |
1.26 |
1.45 |
0.75 |
3 |
25 |
10 |
200 |
3.7 |
|
17AWG |
210/0.08 |
1.05 |
1.35 |
0.68 |
1.7 |
30 |
8 |
200 |
3 |
|
18AWG |
150/0.08 |
0.75 |
1.15 |
0.55 |
2.3 |
39.5 |
6 |
200 |
2.25 |
|
20AWG |
100/0.08 |
0.5 |
0.95 |
0.45 |
1.8 |
63 |
5 |
400 |
2.9 |
|
22AWG |
60/0.08 |
0.3 |
0.72 |
0.45 |
1.7 |
88.5 |
3 |
400 |
2.15 |
|
24AWG |
40/0.08 |
0.2 |
0.58 |
0.45 |
1.6 |
97.6 |
2 |
400 |
1.7 |
|
26AWG |
30/0.08 |
0.15 |
0.5 |
0.45 |
1.5 |
125 |
1.5 |
400 |
1.4 |
|
28AWG |
16/0.08 |
0.08 |
0.37 |
0.4 |
1.2 |
225 |
0.8 |
1500 |
3.6 |
|
30AWG |
11/0.08 |
0.055 |
0.31 |
0.3 |
0.8 |
335 |
0.6 |
2500 |
3.5 |

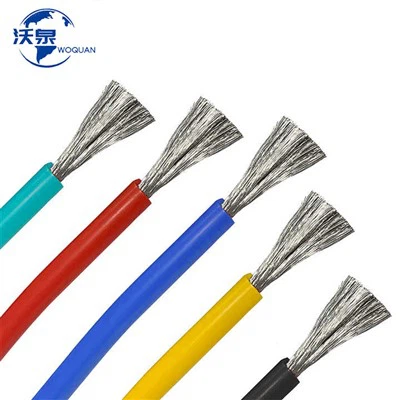

Extra Soft Silicone Wire Specifications
|
Rated voltage：600v |
Test voltage：2000V |
||||||||
|
Temperature：-60℃～200℃ |
Conductor：Tinned copper wire |
||||||||
|
Outer diameter tolerance：0.1mm |
Insulation：silicone |
||||||||
|
Applicable: Battery, Model Aircraft, Electronic Motor, Industry, Power Distribution Cabinet, Drone, Etc. |
|||||||||
|
Conductor |
Insulation |
Electric |
Current |
Length |
|||||
|
Wire |
copper wire |
Area |
Diameter |
Thickness |
OD |
Resistance |
Abe |
||
|
AWG |
mm |
mm² |
mm |
mm |
mm |
Ω/km |
A |
m/roll |
|
|
0AWG |
19000/0.008 |
95.5 |
12.73 |
2.64 |
18 |
0.18 |
955 |
50 |
|
|
1AWG |
15000/0.008 |
75 |
11.3 |
2.3 |
15.5 |
0.45 |
840 |
50 |
|
|
2AWG |
10000/0.008 |
50 |
9.24 |
2.4 |
14 |
0.63 |
630 |
50 |
|
|
3AWG |
6700/0.008 |
33.7 |
7.73 |
2.6 |
13 |
0.89 |
500 |
50 |
|
|
4AWG |
5000/0.008 |
25 |
6.53 |
2.4 |
11 |
1.25 |
400 |
50 |
|
|
6AWG |
3200/0.008 |
16 |
5.23 |
1.65 |
8.5 |
1.9 |
300 |
100 |
|
|
7AWG |
2400/0.008 |
12 |
4.53 |
1.35 |
7.2 |
2.6 |
240 |
100 |
|
|
8AWG |
1650/0.008 |
8.3 |
3.75 |
1.5 |
6.3 |
3.7 |
190 |
100 |
|
|
10AWG |
1050/0.008 |
5.3 |
3 |
1.3 |
5.45 |
6.3 |
140 |
100 |
|
|
11AWG |
750/0.008 |
3.8 |
2.53 |
1.2 |
5 |
8.3 |
105 |
100 |
|
|
12AWG |
680/0.008 |
3.4 |
2.41 |
1 |
4.5 |
9.8 |
88 |
100 |
|
|
13AWG |
500/0.008 |
2.5 |
2.07 |
1 |
4 |
12.5 |
70 |
100 |
|
|
14AWG |
400/0.008 |
2 |
1.85 |
0.9 |
3.5 |
15.6 |
55 |
200 |
|
|
15AWG |
300/0.008 |
1.5 |
1.6 |
0.8 |
3.2 |
20.8 |
42 |
200 |
|
|
16AWG |
252/0.008 |
1.27 |
1.47 |
0.75 |
3 |
24.4 |
35 |
200 |
|
|
17AWG |
210/0.008 |
1 |
1.33 |
0.68 |
2.7 |
29.8 |
30 |
200 |
|
|
18AWG |
150/0.008 |
0.75 |
1.13 |
0.55 |
2.3 |
39.5 |
22 |
200 |
|
|
20AWG |
100/0.008 |
0.5 |
0.92 |
0.45 |
1.8 |
62.5 |
13 |
400 |
|
|
22AWG |
60/0.008 |
0.3 |
0.72 |
0.45 |
1.7 |
88.6 |
8 |
400 |
|
|
24AWG |
40/0.008 |
0.2 |
0.58 |
0.5 |
1.6 |
97.6 |
5 |
400 |
|
|
26AWG |
30/0.008 |
0.16 |
0.51 |
0.5 |
1.5 |
123 |
3.5 |
400 |
|
|
28AWG |
16/0.008 |
0.08 |
0.37 |
0.4 |
1.2 |
227.2 |
1.25 |
1500 |
|
|
30AWG |
11/0.008 |
0.055 |
0.31 |
0.3 |
0.8 |
331 |
0.8 |
2500 |
|
Our products are sold worldwide.We have a professional email system, you can leave a message at any time, and we will reply as soon as possible. Contact us for more detailed information: Email:Postmaster@Sxwqgb.Com
Certification:

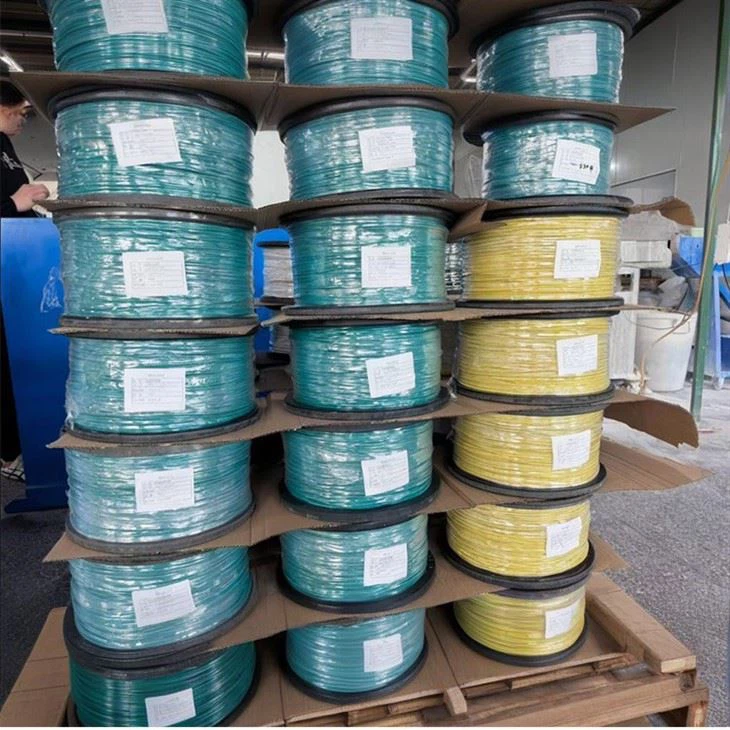

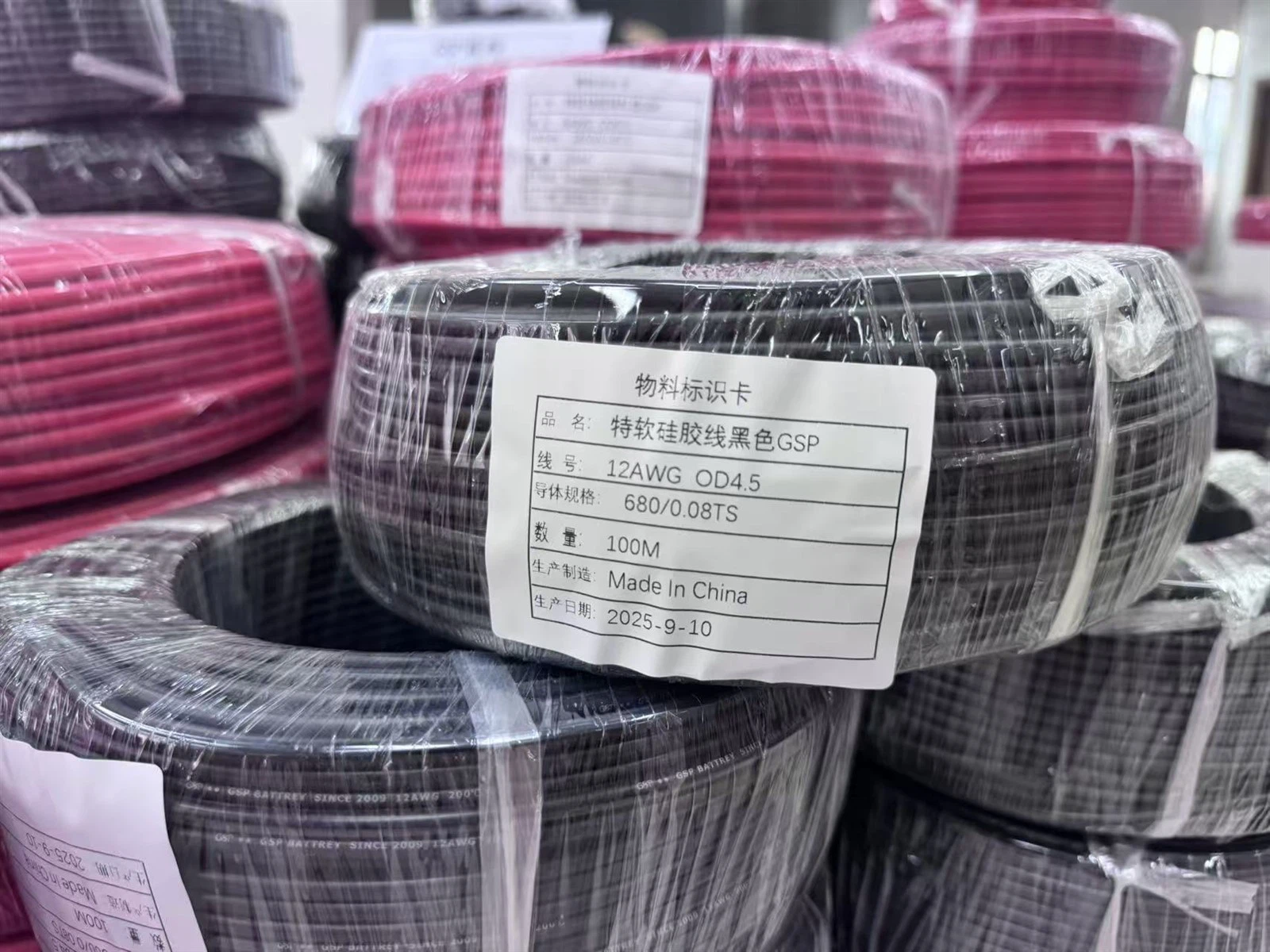

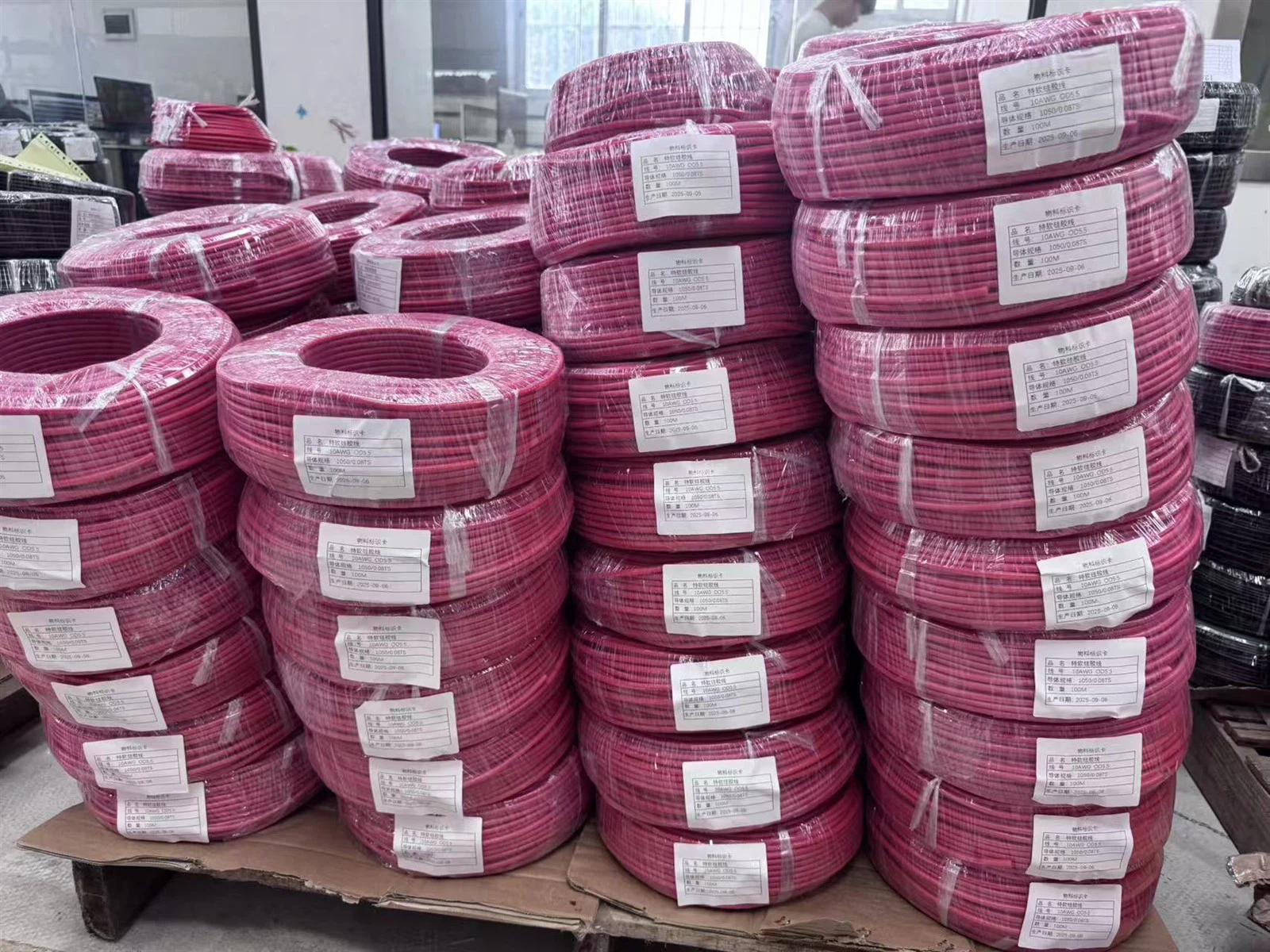

Packing and shipping：
